Requirements To Geometric Specification method, developed by Gili Omri, is a straightforward, practical workflow. Aligning product level functional requirements to clear unambiguous geometric specifications, utilizing either ISO-GPS or ASME GD&T Geometric Dimensioning and Tolerancing Standards.

How to Document and Interpret geometric product specification

Mechanical design solution geometry (CAD Model) and overall Variation Limits (Tolerance Budget) are derived from Top Level Product Requirements. To assure functionality of a mechanical system each part should meet the Designated Geometric Specifications.

TES Method-straightforward, practical approach

TES Method cuts the path from Product Requirements to Part Geometric Specification, by a three step processes:

  1. Datum System: Establishes the functional reference frame of the part, simulating physical assembly constraints, that the part features are located and oriented to and relate datum features as to datum precedence order.
  2. Key Features: Located to Datum System and set geometric variation limits to all features that significantly affect product function, assembly, safety or part manufacturing processes.
  3. Non-Key Features: located to reference frame and set default geometric variation limits to all other features (may be driven by manufacturing process).

Let’s see how it works:

TES-Method Example
The Screw Base Part (yellow part in Figure 1)

TES Method-straightforward, practical approach

Figure 1
Part thread advances the clamp drive screw


Primary Datum System

Datum system depicts functional constraints, arresting rotation & translation degrees of freedom as in real world assembly.

Datum features are controlled relative to each other as to the functional precedence order!

TES Method-straightforward, practical approach

Figure 2

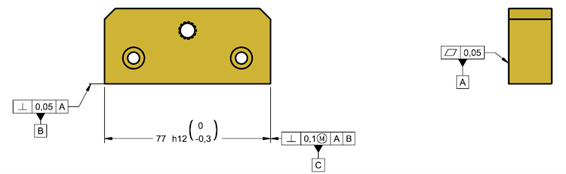

  • Primary Datum Feature A: mount face, has only Form variation controlled by flatness.
  • Secondary Datum Feature B: should be flush to table, orientation to A & form controlled by perpendicularity
  • Tertiary Datum Feature C: part symmetry plane, perpendicular to A & B

Key Features

Key Features are critical features to the parts function.

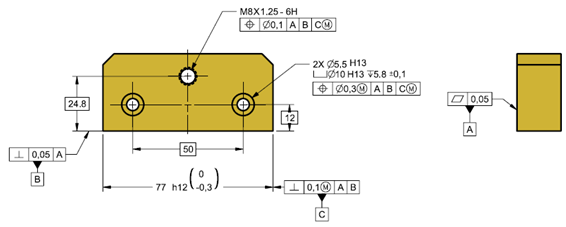

In this case the M8 driving thread and the two socket head counter bore holes.

TES Method-straightforward, practical approach

Driving Threads location variation is controlled by position relative to relevant datum system. The Socket Head Holes are controlled in the same manner.

Non-Key Features

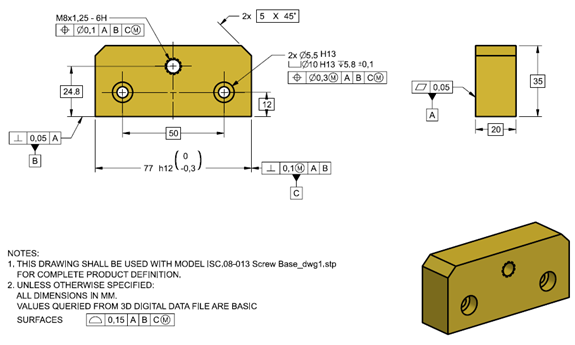

All features that are needed (otherwise not modelled or fabricated), have a secondary effect on part function. Non-Key features are most likely to be controlled by a general profile tolerance related to the main datum system.

TES Method-straightforward, practical approach

Figure 4
