Location and Orientation

Location and Orientation

Answer:

Location and Orientation Specification / Requirement is to a Datum System \ Datum reference frame only!

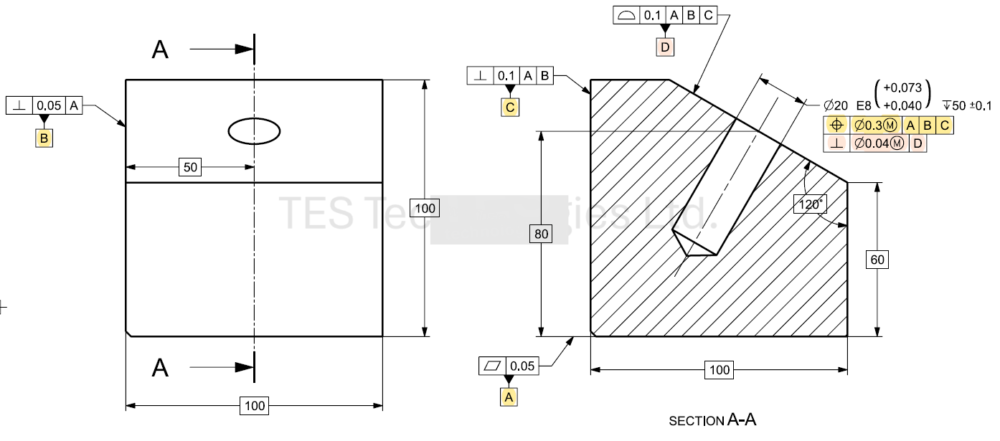

If there is a need to tighten orientation to a local surface

Then the surface may be defined as a Datum Feature and a Perpendicularity call may be added

Question:

How to specify orientation of a hole to a local surface (which is not a Datum Feature)?

Location and Orientation
